Cross roller slewing ring

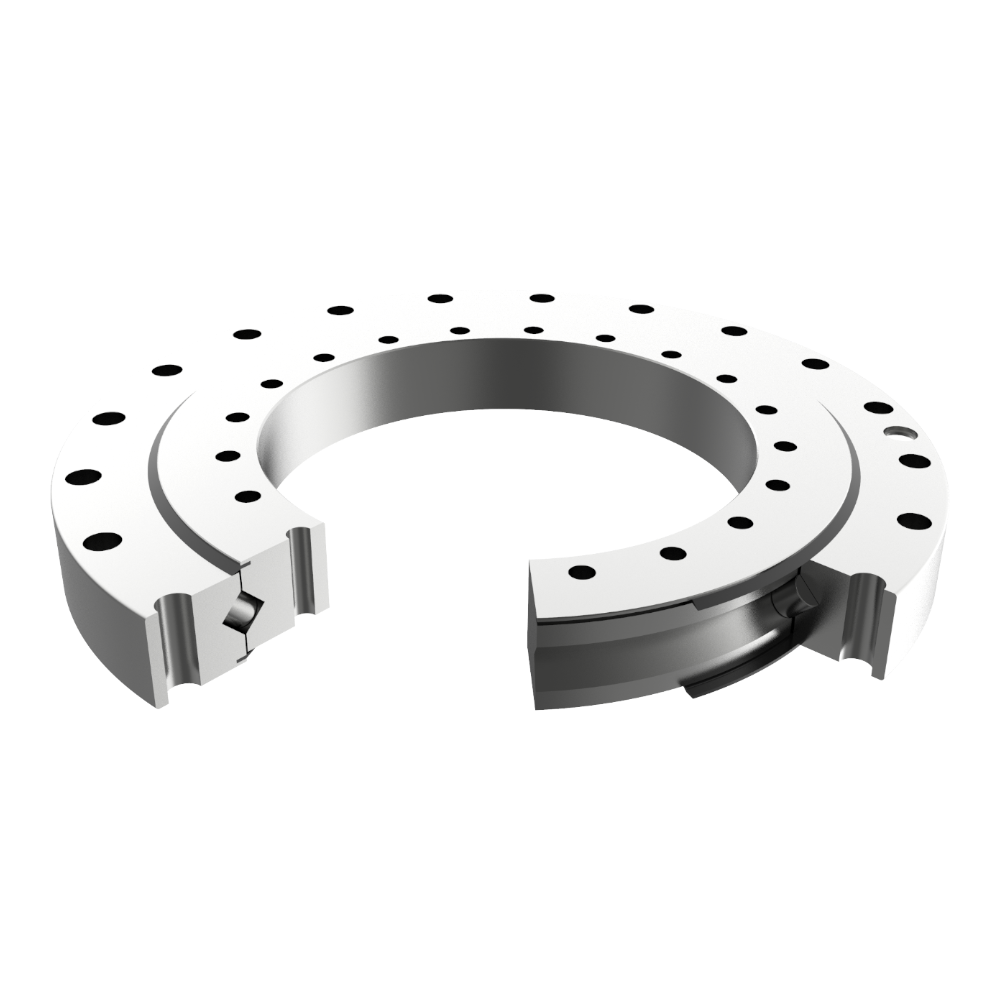

Cross-roller type slewing bearings, their rollers are arranged at 90° to each other at intervals between the inner ring and the outer ring. They can simultaneously bear loads from all directions (such as axial, radial, overturning moment, etc.)

动态图片

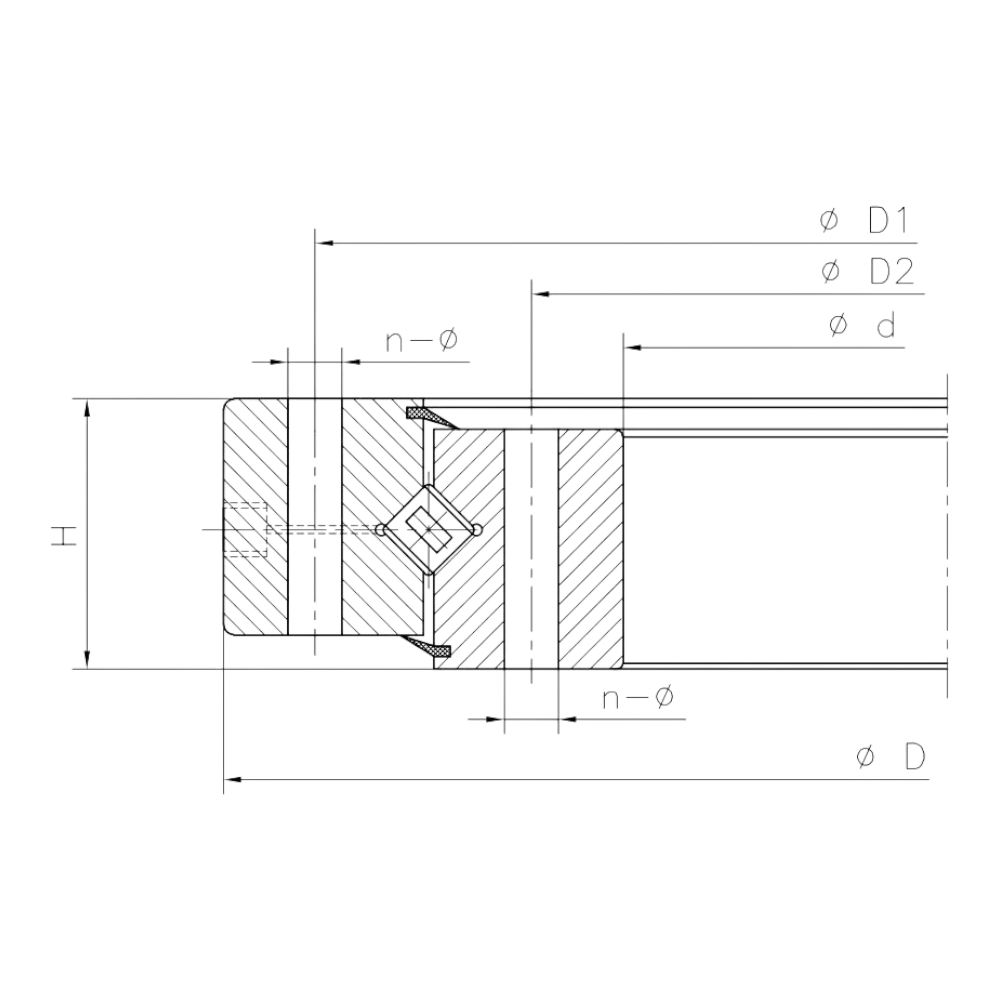

Dimensions

D
2178 mm
d
1825 mm
H
112 mm
H1
100 mm
h
12 mm
D1
2110 mm
D2
1891 mm
n
48
φ
33 mm
动态图片

Technical Specification

m
da
Da
Z
b
x
Mass
770 Kg

Download

Dimensions

D
16  mm
d1h7
6  mm
B
28  mm
B1 max
12.2  mm
B2
16  mm
B3
-  mm
C
11  mm
C1
0.6  mm
r/min
0.15  mm
d2
12.5  mm
d3
-  mm
G
M6(X1)  mm
LG
8  mm
W2)
-  mm
Eccentric sleeve de h9
9  mm
Eccentric sleeve Be
7  mm
Eccentric sleeve e
0.5  mm
BCC1lgDGd2d1B1B2rWKR..-PP  (R=500mm )

Technical
Specification

Grease fitting
NIPA1
Tightening torque MA
3  Nm
Basic dynamic load rating Crw
3140  N
Basic static load rating Corw
3300  N
Fatigue load limit  Curw
440  N
Rotating speed  nDG
13000  r/min
Mass
0.018  KG

Download


General

Gear Type
No

Technical Specification

m
da
Da
Z
b
x
Mass
770 Kg

Dimensions

D
2178 mm
d
1825 mm
H
112 mm
H1
100 mm
h
12 mm
D1
2110 mm
D2
1891 mm
n
48
φ
33 mm
