134.45.2000

Three-row roller slewing ring

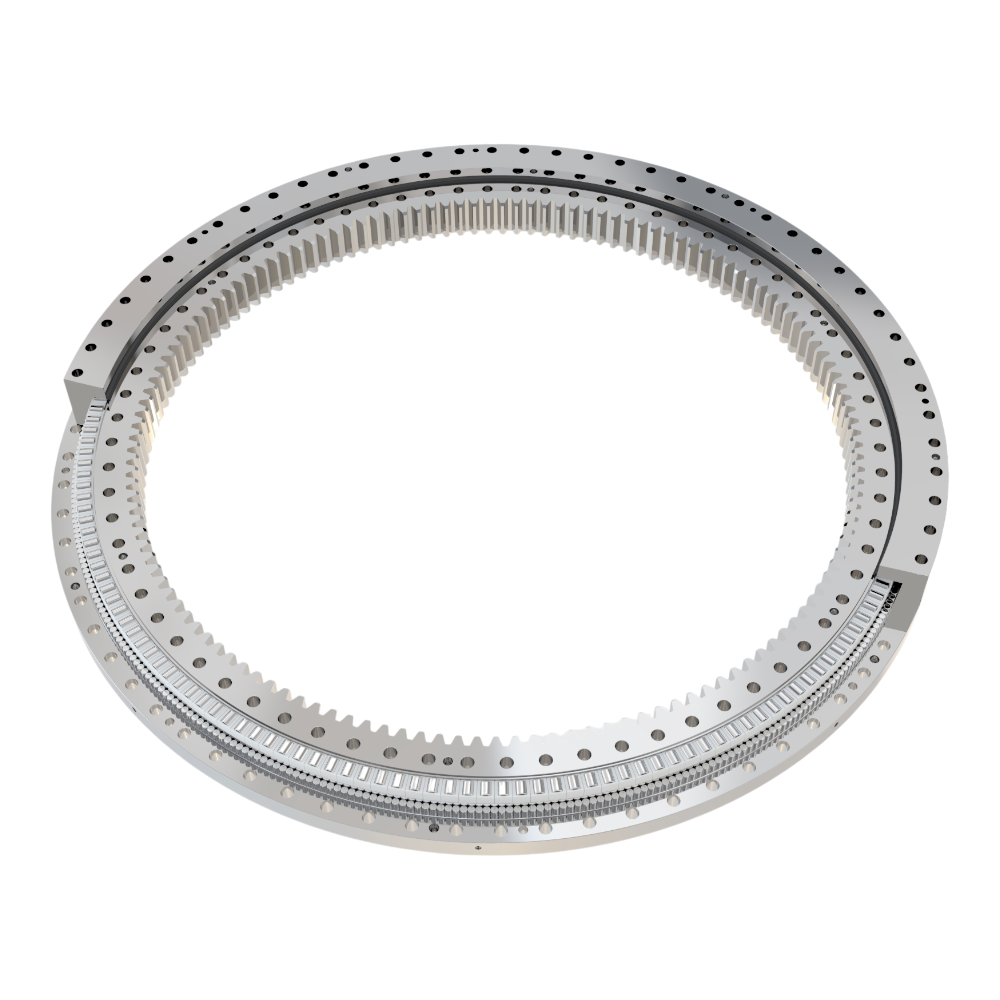

The three-row cylindrical roller combined slewing bearing is mainly composed of an inner ring, an outer ring, three rows of rollers (two sets of axial and one set of radial rollers), a cage (spacer block), and has the characteristics of high load carrying capacity and good rigidity. , At the same time, it has mounting holes and sealing accessories or is equipped with teeth on the inner ring or outer ring to simplify the installation structure.

动态图片

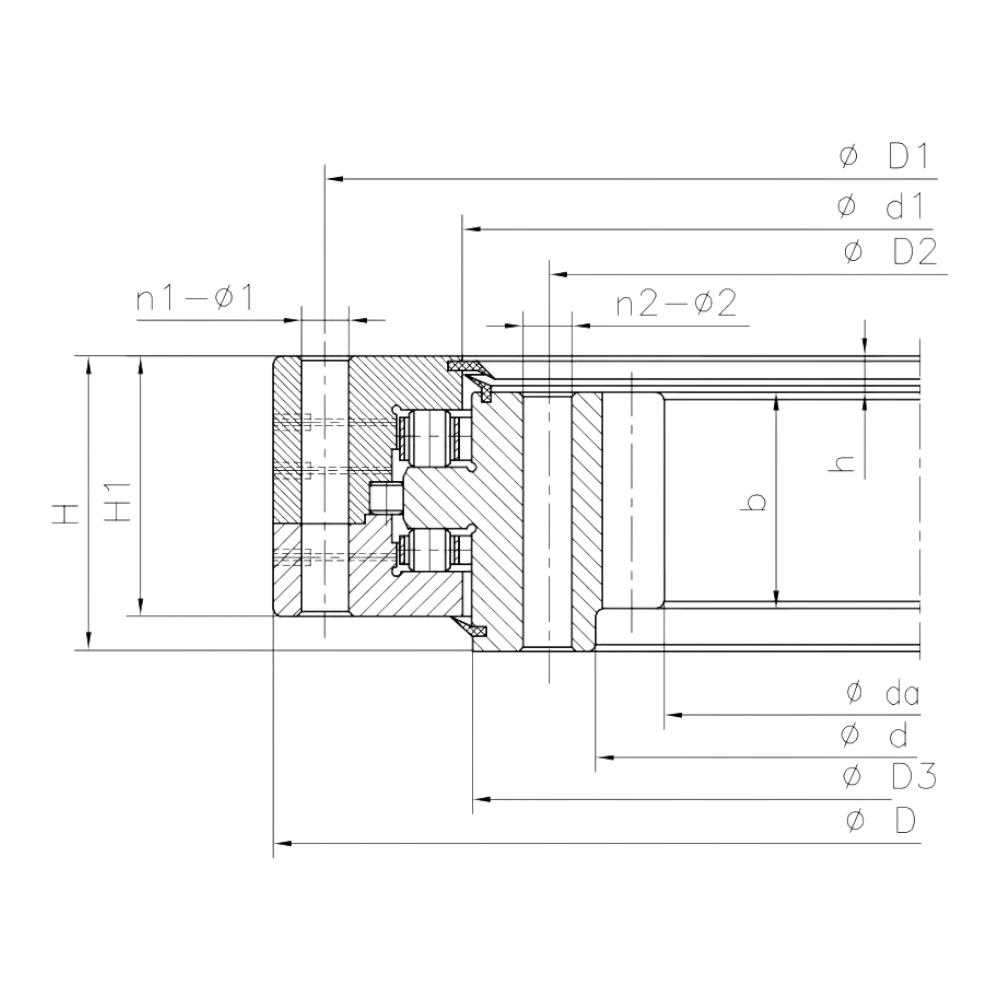

Dimensions

D
2221 mm
d
1779 mm
H
231 mm
H1
219 mm
h
54 mm
D1
2155 mm
D2
1845 mm
n
60 mm
φ
33 mm
动态图片

Technical Specification

m
18
da
1692 mm
Da
Z
95
b
160 mm
x
0.5
Mass
2100 Kg

Download

Dimensions

D
16  mm
d1h7
6  mm
B
28  mm
B1 max
12.2  mm
B2
16  mm
B3
-  mm
C
11  mm
C1
0.6  mm
r/min
0.15  mm
d2
12.5  mm
d3
-  mm
G
M6(X1)  mm
LG
8  mm
W2)
-  mm
Eccentric sleeve de h9
9  mm
Eccentric sleeve Be
7  mm
Eccentric sleeve e
0.5  mm
BCC1lgDGd2d1B1B2rWKR..-PP  (R=500mm )

Technical
Specification

Grease fitting
NIPA1
Tightening torque MA
3  Nm
Basic dynamic load rating Crw
3140  N
Basic static load rating Corw
3300  N
Fatigue load limit  Curw
440  N
Rotating speed  nDG
13000  r/min
Mass
0.018  KG

Download


General

Gear Type
Internal

Technical Specification

m
18
da
1692 mm
Da
Z
95
b
160 mm
x
0.5
Mass
2100 Kg

Dimensions

D
2221 mm
d
1779 mm
H
231 mm
H1
219 mm
h
54 mm
D1
2155 mm
D2
1845 mm
n
60 mm
φ
33 mm
