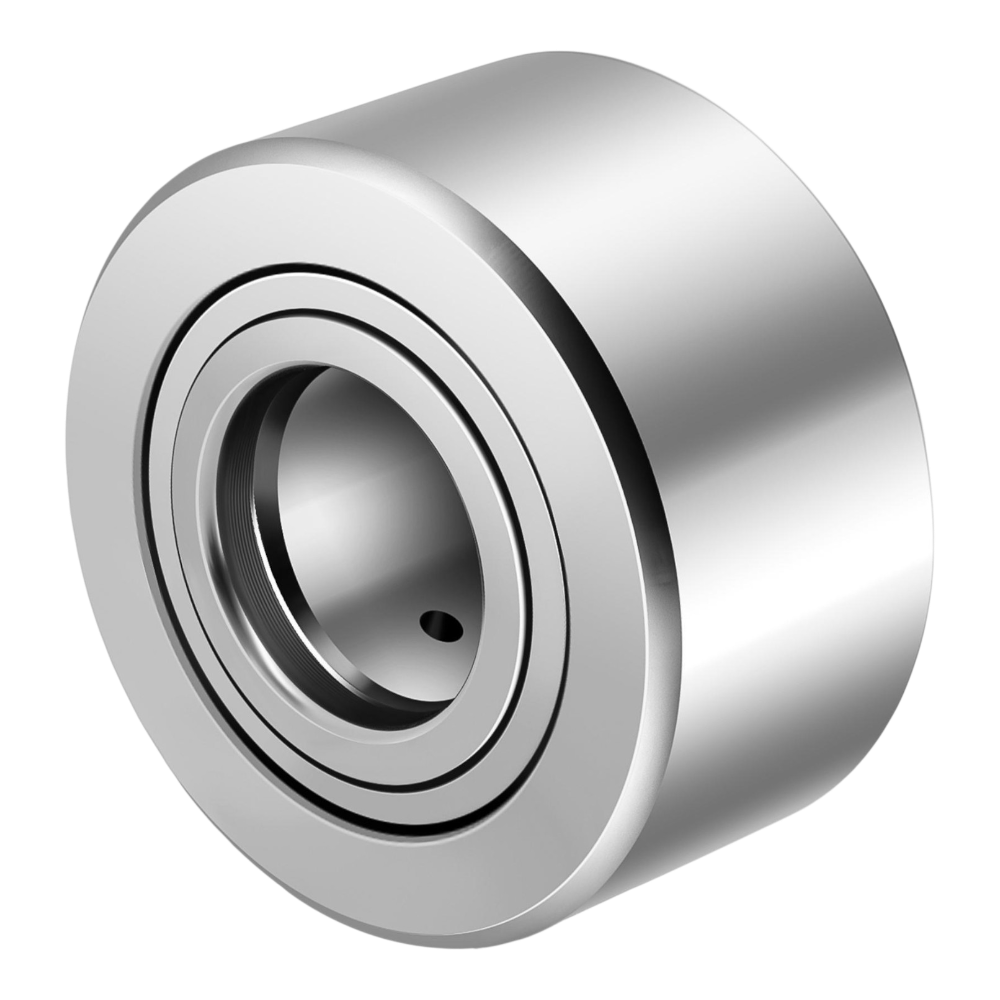

NATR 12-PP

Yoke type track rollers

Yoke type track roller with inner ring, axial guidance, full complement needle roller or with cage.

Get A QuoteDownload
动态图片

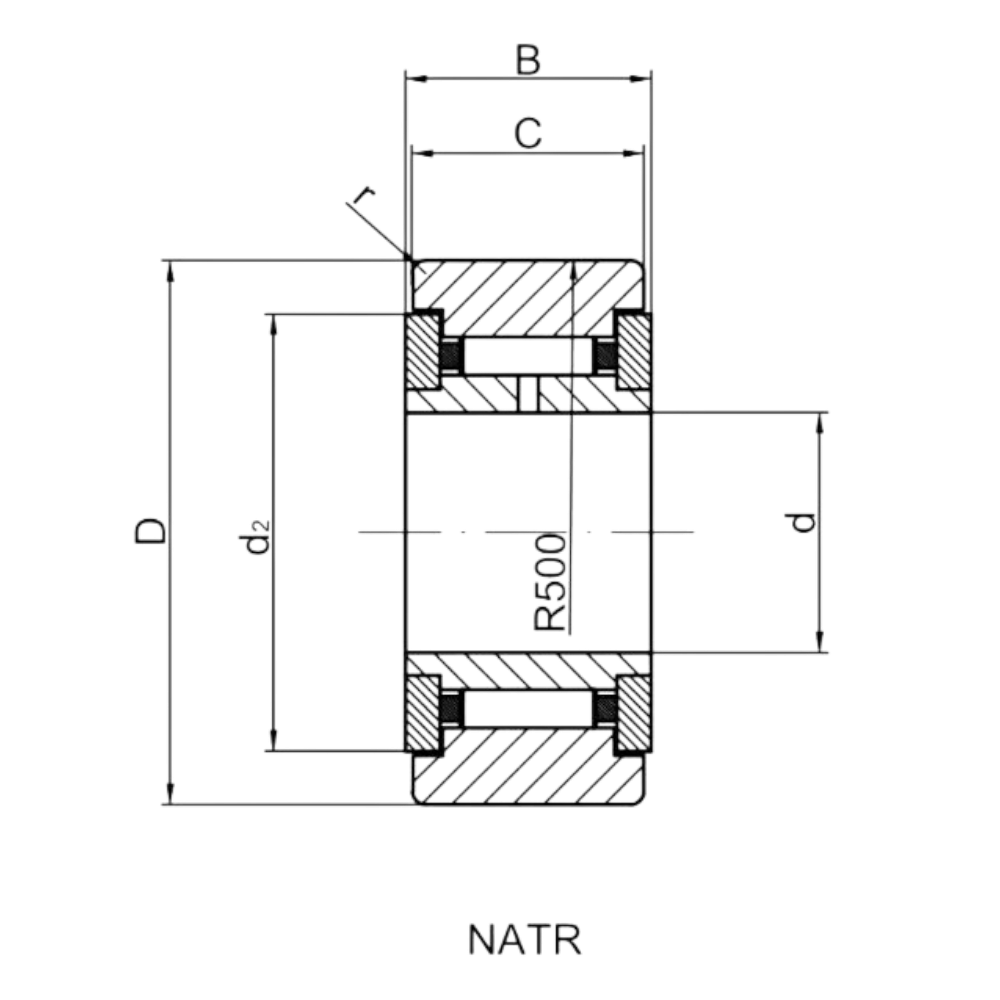

Dimensions

D h10
—
D
32 mm
d
12 mm
B
15 mm
C
14 mm
Fw
—
d2
25 mm
r min
0.6 mm
动态图片

Technical Specification

Basic dynamic load rating Crw
6800 N
Basic static load rating C0rw
8800 N
Fatigue load limit Curw
1250 N
Rotating speed nDG
4400 r/min
Mass
0.066 Kg

Download

Dimensions

D
16  mm
d1h7
6  mm
B
28  mm
B1 max
12.2  mm
B2
16  mm
B3
-  mm
C
11  mm
C1
0.6  mm
r/min
0.15  mm
d2
12.5  mm
d3
-  mm
G
M6(X1)  mm
LG
8  mm
W2)
-  mm
Eccentric sleeve de h9
9  mm
Eccentric sleeve Be
7  mm
Eccentric sleeve e
0.5  mm
BCC1lgDGd2d1B1B2rWKR..-PP  (R=500mm )

Technical
Specification

Grease fitting
NIPA1
Tightening torque MA
3  Nm
Basic dynamic load rating Crw
3140  N
Basic static load rating Corw
3300  N
Fatigue load limit  Curw
440  N
Rotating speed  nDG
13000  r/min
Mass
0.018  KG

Download

HD Power Station ValveHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve Samples

Dimensions

D h10
—
D
32 mm
d
12 mm
B
15 mm
C
14 mm
Fw
—
d2
25 mm
r min
0.6 mm

Technical Specification

Basic dynamic load rating Crw
6800 N
Basic static load rating C0rw
8800 N
Fatigue load limit Curw
1250 N
Rotating speed nDG
4400 r/min
Mass
0.066 Kg
