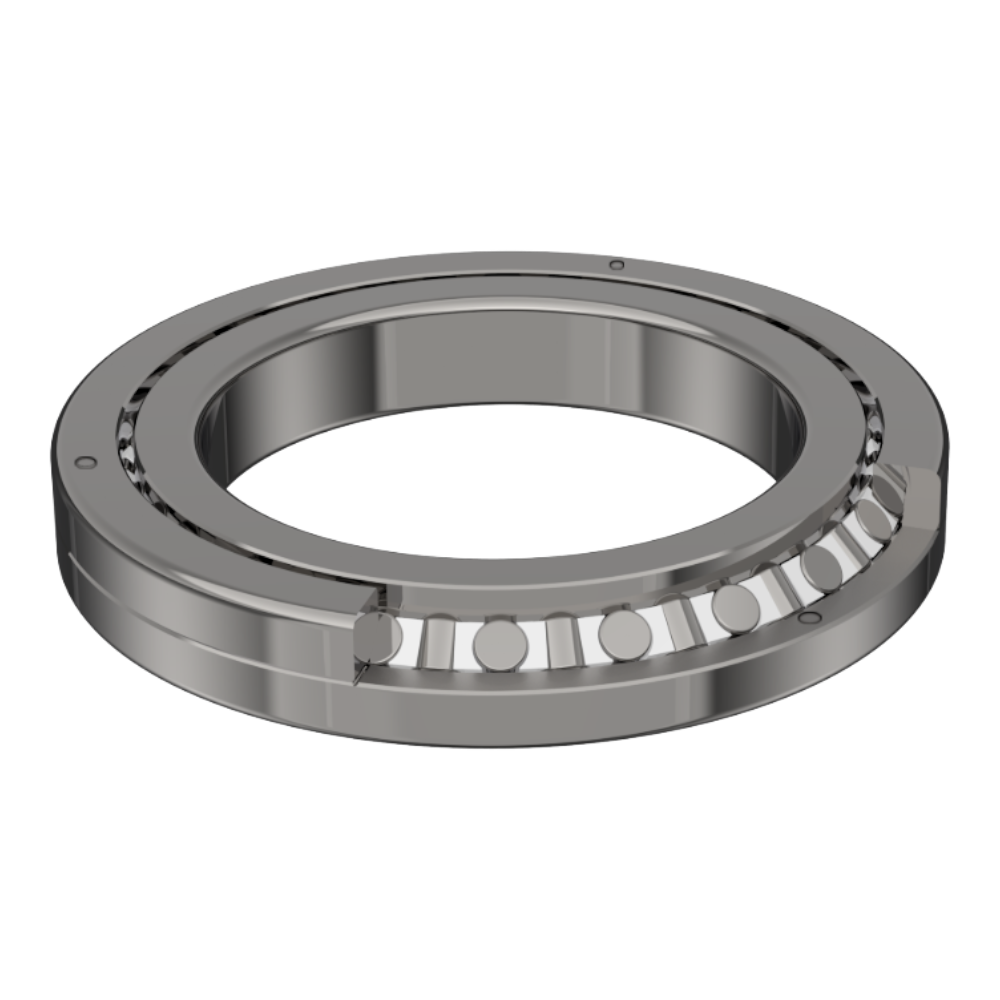

RB 13025

Cross Cylindrical Roller Bearing

RB Type (with two half outer rings and a one-piece inner ring)

Get A Quote Download

动态图片

Dimensions

d

130 mm

D

190 mm

B

25 mm

Chamfer

1.5 rs min

动态图片

Technical Specification

Basic dynamic load rating (Cr)

69500 N

Basic static load rating (C0r)

107000 N

Mass

2.82 Kg

Download

Dimensions

D: 16 mm
d1h7: 6 mm
B: 28 mm
B1 max: 12.2 mm
B2: 16 mm
B3: - mm
C: 11 mm
C1: 0.6 mm
r/min: 0.15 mm
d2: 12.5 mm
d3: - mm
G: M6(X1) mm
LG: 8 mm
W2): - mm
Eccentric sleeve de h9: 9 mm
Eccentric sleeve Be: 7 mm
Eccentric sleeve e: 0.5 mm

Technical
Specification

Grease fitting: NIPA1
Tightening torque MA: 3 Nm
Basic dynamic load rating Crw: 3140 N
Basic static load rating Corw: 3300 N
Fatigue load limit Curw: 440 N
Rotating speed nDG: 13000 r/min
Mass: 0.018 KG

Download

HD Power Station Valve HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples

Dimensions

d

130 mm

D

190 mm

B

25 mm

Chamfer

1.5 rs min

Technical Specification

Basic dynamic load rating (Cr)

69500 N

Basic static load rating (C0r)

107000 N

Mass

2.82 Kg
