RU42 Cross Cylindrical Roller Bearing

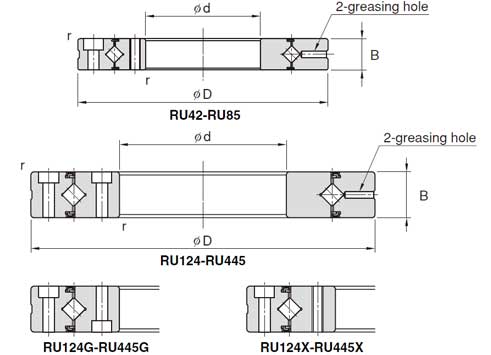

Specifications of RU4 Cross Cylindrical Roller Bearing

ITEM		RU42
Dimensions(mm)	Dimensions(Inner diameter)(d)	20
	Dimensions(Outer diameter)(D)	70
	Dimensions(Roller PCD)(dp)	41.5
	Dimensions(Width)(B)	12
	r	0.6
	da	37
	Da	47
	Dimensions(Grease holes)(d)	3.1
	Dimensions(Grease holes)(rmin)	0.6
Basic loading(KN)	Basic loading(C)	7.35
Basic loading(KN)	Basic loading(C0)	8.35
Weight(kg)		0.29
Mounting holes(mm)	Mounting holes(PCD1)	28
	Mounting holes(Inner ring Mounting holes)	6-M3 through
	Mounting holes(PCD2)	57
	Mounting holes(Outer ring Mounting holes)	6-φ3.4 through, φ6.5 counterbore depth 3.3
