3313 DNRCBM Double Row Angular Contact Ball Bearing

Specifications of 3313 DNRCBM Double Row Angular Contact Ball Bearing

Designations (Bearing with metal cage)		3313DNRCBM
Designations (polyamide cage)		–

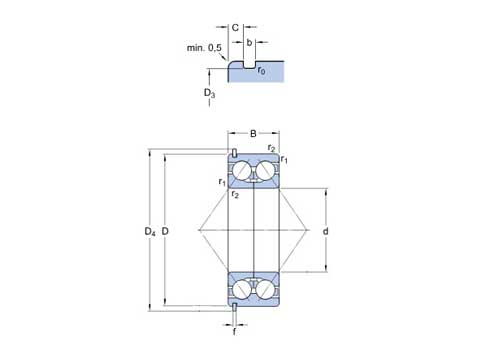

Dimensions(mm)	d	65
	D	140
	B	58,7
	r1,2	2.1
	C	4.9
	b	3.1
	F	2.82
	D3	135.2
	D4	149.7
Basic load ratings(KN)	Basic load ratings (dynamic)(C)	135.24
Basic load ratings(KN)	Basic load ratings (static)(C0)	119.56
Fatigue load limit (Pu)		5,1
Speed ratings(r/min)	Speed ratings (Reference speed)	4 300
Speed ratings(r/min)	Speed ratings (Limting speed)	4 500
Mass(kg)		4
