7224 BCBM Single Row Angular Contact Ball Bearing

Specifications of 7224 BCBM Single Row Angular Contact Ball Bearing

Designations (Universally matchable bearing)		7224BCBM
Designations (Basic design bearing)		7224BM

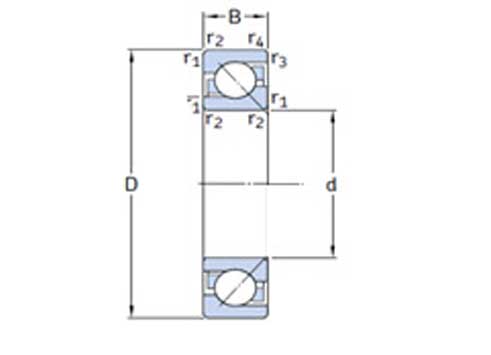

Dimensions(mm)	d	120
	D	215
	B	40
	r1,2	2.1
	r3,4	1.1
Basic load ratings(KN)	Basic load ratings (dynamic)(C)	160.05
Basic load ratings(KN)	Basic load ratings (static)(C0)	158.11
Fatigue load limit (Pu)		5,3
Speed ratings(r/min)	Speed ratings (Reference speed)	3 400
Speed ratings(r/min)	Speed ratings (Limting speed)	3 600
Mass(kg)		5,9
