7309 BEGAPH Single Row Angular Contact Ball Bearing

Specifications of 7309 BEGAPH Single Row Angular Contact Ball Bearing

Designations (Universally matchable bearing)		* 7309BEGAPH
Designations (Basic design bearing)		–

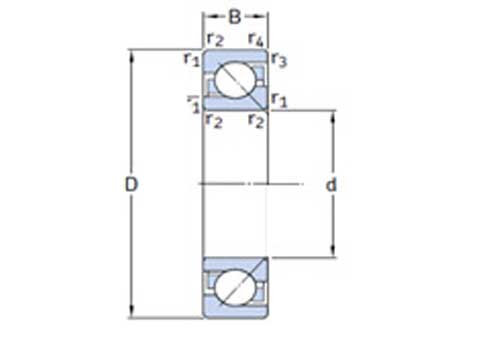

Dimensions(mm)	d	45
	D	100
	B	25
	r1,2	1.5
	r3,4	1
Basic load ratings(KN)	Basic load ratings (dynamic)(C)	59.17
Basic load ratings(KN)	Basic load ratings (static)(C0)	39.285
Fatigue load limit (Pu)		1,73
Speed ratings(r/min)	Speed ratings (Reference speed)	9 000
Speed ratings(r/min)	Speed ratings (Limting speed)	9 000
Mass(kg)		0,82
