7338 BCBM Single Row Angular Contact Ball Bearing

Specifications of 7338 BCBM Single Row Angular Contact Ball Bearing

Designations (Universally matchable bearing)		7338BCBM
Designations (Basic design bearing)		–

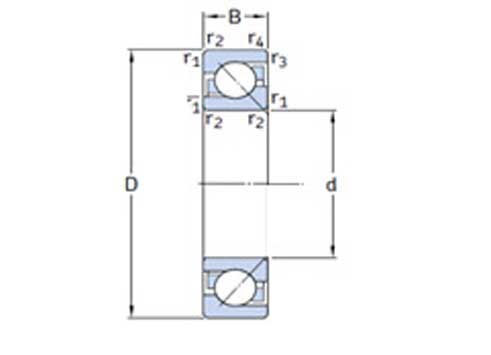

Dimensions(mm)	d	190
	D	400
	B	78
	r1,2	5
	r3,4	2
Basic load ratings(KN)	Basic load ratings (dynamic)(C)	428.74
Basic load ratings(KN)	Basic load ratings (static)(C0)	582
Fatigue load limit (Pu)		14,6
Speed ratings(r/min)	Speed ratings (Reference speed)	1 900
Speed ratings(r/min)	Speed ratings (Limting speed)	2 000
Mass(kg)		48,5
