CRBF 2012 AT Cross Cylindrical Roller Bearing

Specifications of CRBF 2012 AT Cross Cylindrical Roller Bearing

Shaft diameter(mm)		20
Identification number(Open type)		CRBF2012AT
Weight(Ref.)(kg)		0.31

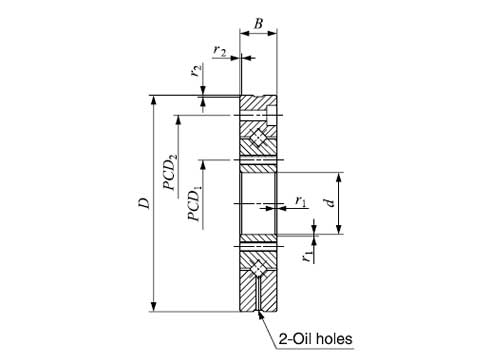

Boundary dim(mm)	Boundary dim(d)	20
	Boundary dim(D)	70
	Boundary dim(B)	12
Boundary dim(r1min(1))		0.3
Boundary dim(r2min(1))		0.3
Mounting holes(mm)	Mounting holes(PCD1)	28
	Mounting holes(Inner ring Mounting holes)	6-M3 through
	Mounting holes(Outer ring Mounting holes)	6-φ3.4 through φ6.5 counter bore depth 3.3
	Mounting holes(PCD2)	57
Mounting dimensions(da)		36.5
Mounting dimensions(Da)		48.5
Basic dynamic load rating(N)	Basic dynamic load rating(C)	7600
Basic dynamic load rating(N)	Basic satic load rating(C0)	8370
Shaft diameter(mm)		20
