CRBF 2512 AT Cross Cylindrical Roller Bearing

CRBF 2512 AT

Specifications of CRBF 2512 AT Cross Cylindrical Roller Bearing

Shaft diameter(mm)25
Identification number(Open type)CRBF2512AT

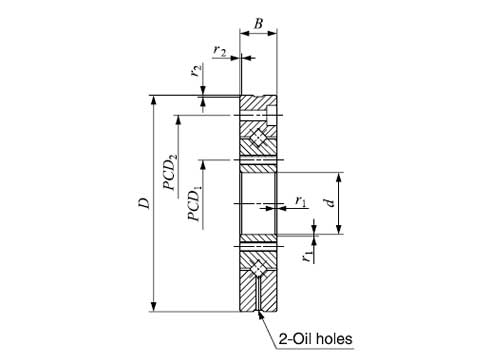

Boundary dim(mm)Boundary dim(d)25
Boundary dim(D)25
Boundary dim(B)12
Boundary dim(r1min(1))0.6
Boundary dim(r2min(1))0.6
Mounting holes(mm)Mounting holes(PCD1)35
Mounting holes(Inner ring Mounting holes)6-M3 through
Mounting holes(Outer ring Mounting holes)6-φ3.4 through
φ6.5 counter bore depth 3.3
Mounting holes(PCD2)67
Mounting dimensions(da)46.5
Mounting dimensions(Da)58.5
Basic dynamic load rating(N)Basic dynamic load rating(C)8610
Basic satic load rating(C0)10600
Shaft diameter(mm)25
