Slewing Ring
Four-point Contact Ball Slewing Ring
TLR20/414
TLR20/414
Four-point Contact Ball Slewing Ring
GET A QUOTE

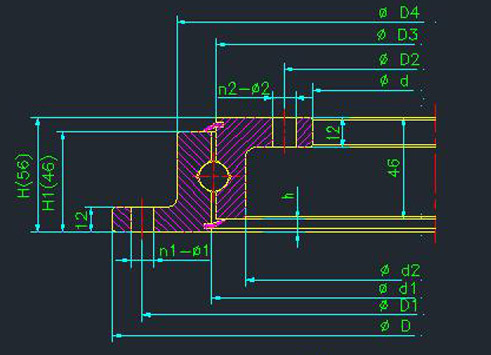

Specifications of TLR20/414 Four-point Contact Ball Slewing Ring
Designation
No Gear
TLR20/414
Boundary Dimension
D
518
d
304
H
56
H1
46
h
10
Mounting Hole Size
D1
490
D2
332
n1
8
n2
12
φ1
φ18
φ2
φ18
Structure dimensions
D4
453
d2
375
d1
415.5
D3
412.5
Wt(KG)
25
