RNA2200 2RSR Support Roller

RNA2200 2RSR

GET A QUOTE ANY QUESTIONS

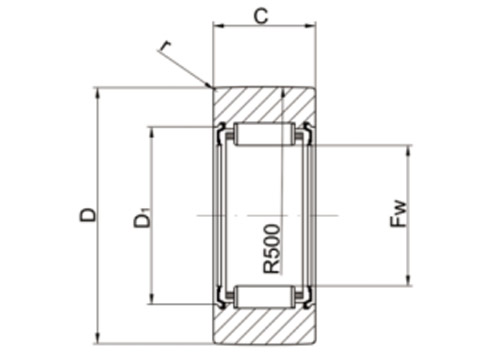

Specifications of RNA2200 2RSR Support Roller

Item no with internal ring		RNA22002RSR
(Mass) m≈g		52
Dimensions	D	30
	C	13.8
	Fw1)	14
	D1 min	20
	r min	0.6
Basic load rating	Basic dynamic load rating (Crw N)	7000
Basic load rating	Basic static load rating (Corw N)	6800
Fatigue load limit (Curw N)		1060
Rotating speed ( nDG min-1 )		5400
