CRBH 3510 A UU Cross Cylindrical Roller Bearing

CRBH 3510 A UU

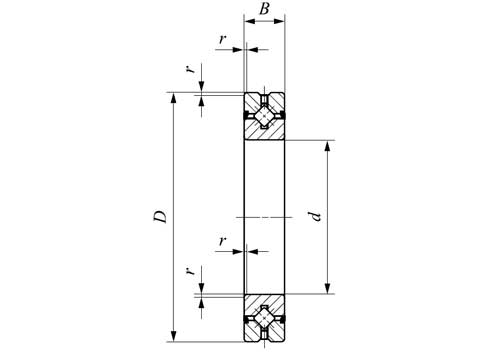

Specifications of CRBH 3510 A UU Cross Cylindrical Roller Bearing

Boundary dim(mm)Boundary dim(d)35
Boundary dim(D)60
Boundary dim(B)10
Boundary dim(r)0.3
Mounting dimensions(mm)Mounting dimensions(da)41.5
Mounting dimensions(Da)53.5
Basic dynamic load rating(N)Basic dynamic load rating7 900
Basic static load rating9 130
Shaft diameter(mm)35
